KEY FEATURES
- Converts smoothly from Modbus TCP to RTU
- 4 simultaneous TCP masters with up to 32 simultaneous requests per master
- Effortless configuration via web-based wizard
- Built-in Ethernet cascading for easy wiring
- 32-bit ARM core microcontroller, with an 84 MHz clock
- Embedded traffic monitoring as well as diagnostic information for easy trouble shooting

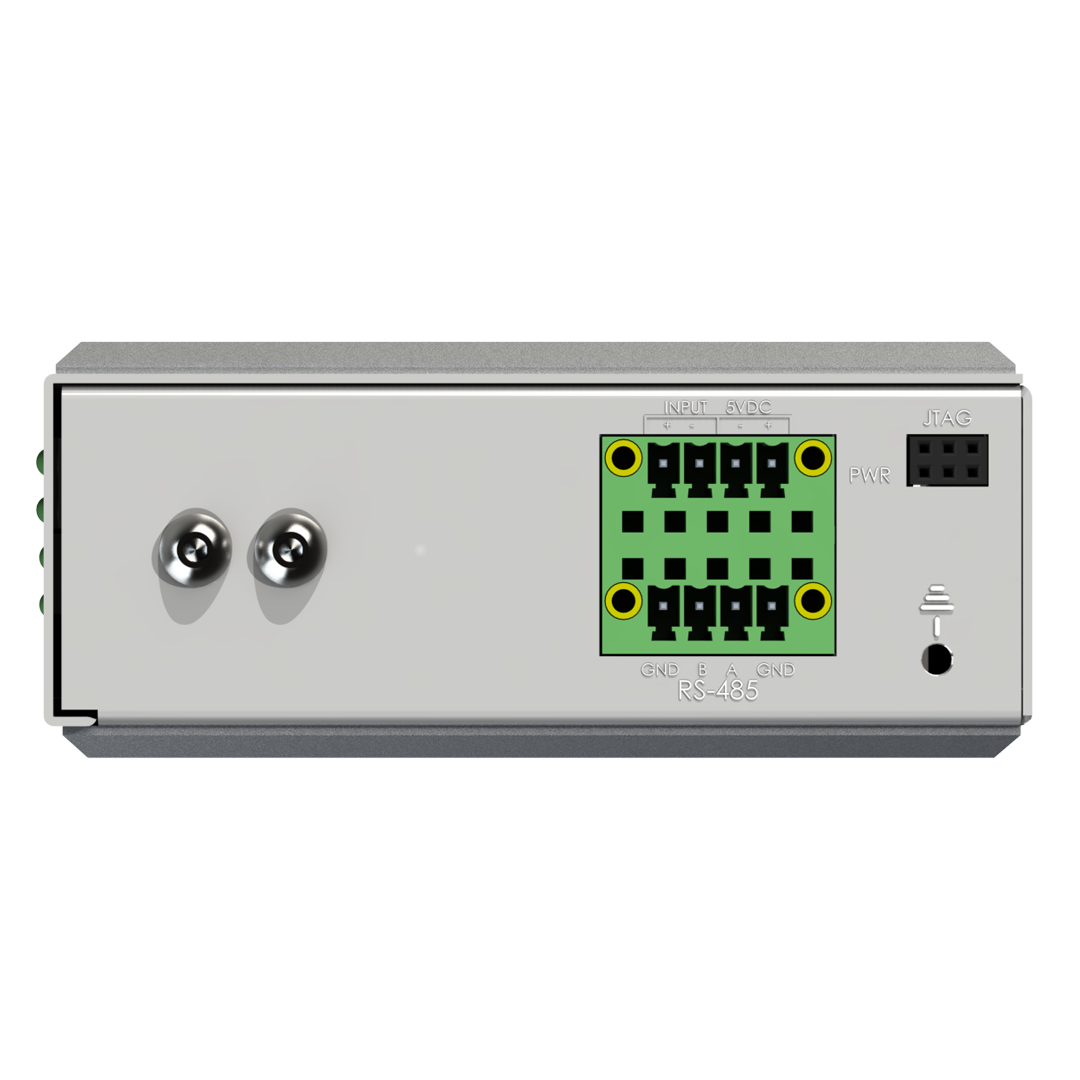

- 1x RS485 Fixed console serial communication port

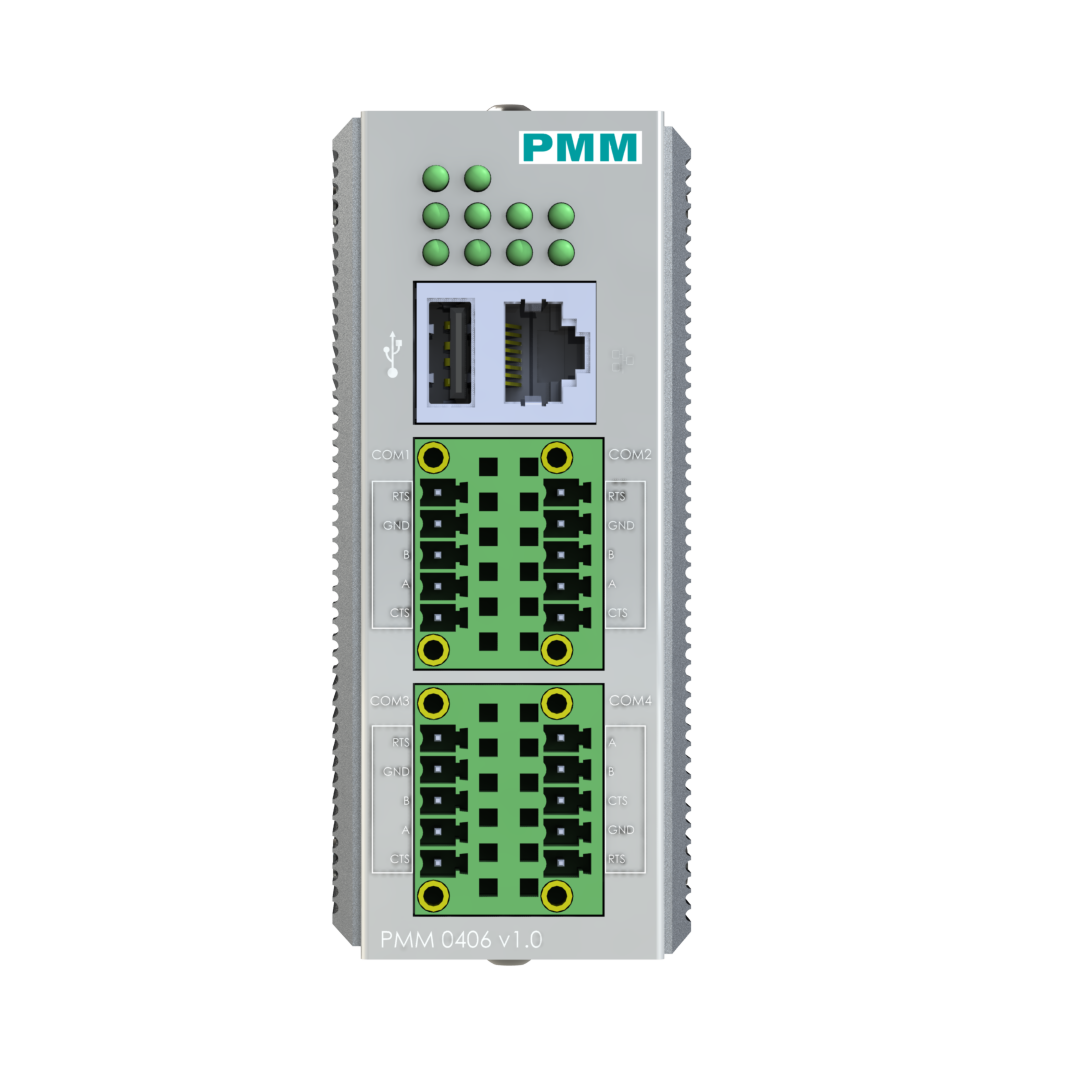

- 4x RS485 - RS232 Serial communication ports
- Baud rate: 110-115200 bps

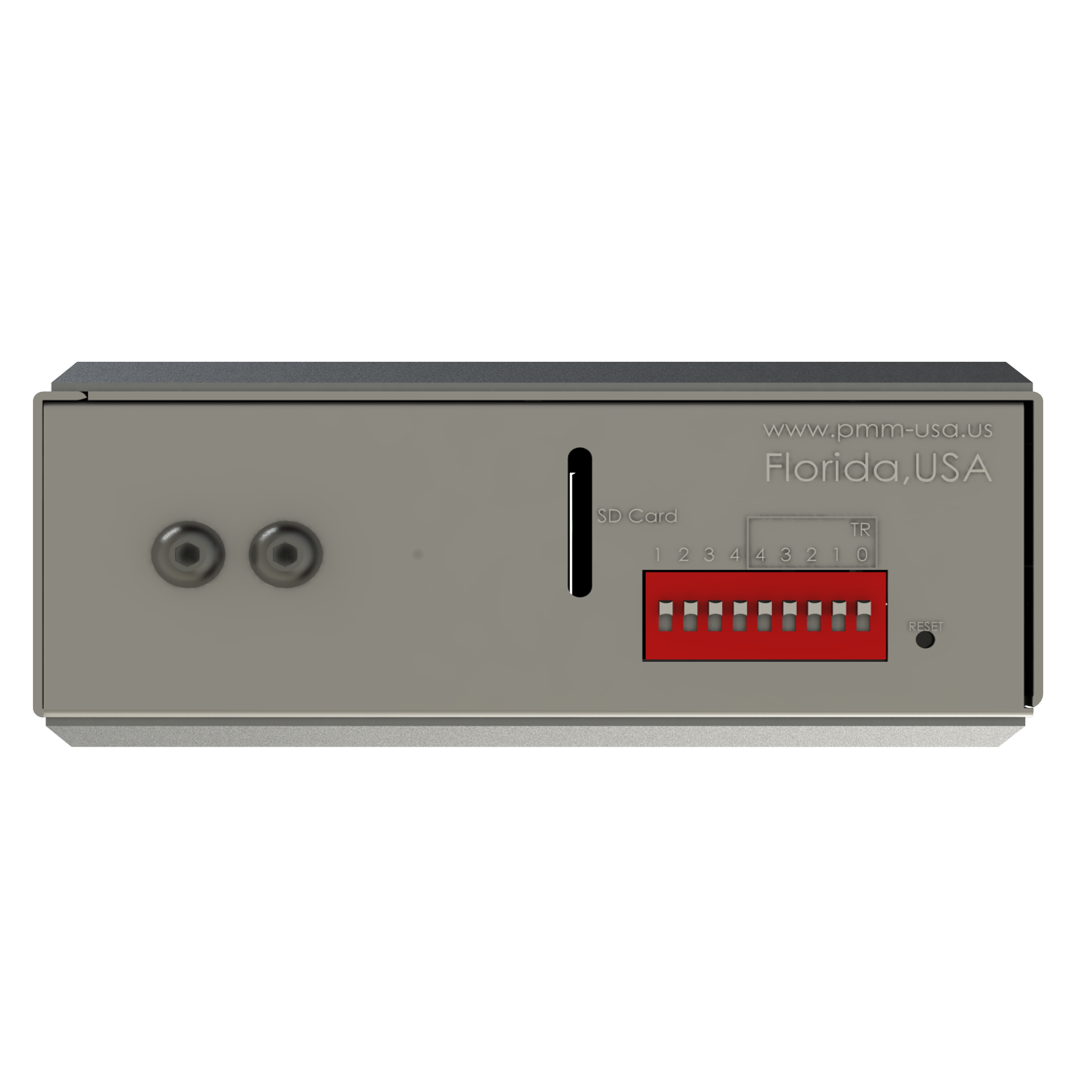

- Supports 2-32 GB SD card for configuration backup and duplication for event logs
- Status monitoring with fault protection for easy maintenance
- Different Power supply options with over voltage and reverse polarity protection
- 9x 120Ω terminal resistors controlled by dip switch
- Operating temperature: -40 to 75oC (-40 to 167°F)
- Storage temperature: -40 to 85oC (-40 to 185°F)
- Ambient relative humidity 5 to 95% (non-condensing)
- EMI, EMS, EMC and shock protected
- Overvoltage and reverse polarity protected
- Serial port with power surge ±2.5kV isolation protection
